View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0001141T99X171.00 SKB Eagle_Vendor_IssueGeneralpublic2021-02-08 11:302021-12-23 16:27
Reporter(ALTech) Younkwang Jung Assigned To(Amlogic) Mega Wu Due Date
PrioritynormalSeveritys2-severeReproducibilitysometimes
Status closedResolutionfixed
Summary0001141: The SMART3 STB has seen audio silence since Bluetooth connection/disconnect.
DescriptionHi Kerwin

During SKB manager test, he checked audio silence after Bluetooth connection/disconnect from STB.
Please check it.

[issue description]
1) Power On > Bluetooth Speaker Connection > No sound output to Bluetooth Speaker from existing paired Bluetooth Speaker
2) Bluetooth speaker power off > Bluetooth speaker off > TV speaker no sound output, volume bar in Bluetooth mode

[Log]
- "/vendor/bin/hw/android.hardware.audio@2.0-service-droidlogic" crash issue is occurred
============================================================================
..
02-06 18:32:06.963 11013 11013 F DEBUG : ABI: 'arm'
02-06 18:32:06.964 11013 11013 F DEBUG : Timestamp: 2021-02-06 18:32:06+0900
02-06 18:32:06.964 11013 11013 F DEBUG : pid: 3467, tid: 3565, name: HwBinder:3467_2 >>> /vendor/bin/hw/android.hardware.audio@2.0-service-droidlogic <<<
02-06 18:32:06.964 11013 11013 F DEBUG : uid: 1041
02-06 18:32:06.964 11013 11013 F DEBUG : signal 6 (SIGABRT), code -1 (SI_QUEUE), fault addr --------
02-06 18:32:06.964 11013 11013 F DEBUG : Abort message: 'decStrong() called on 0xeed05bd0 too many times'
..
=============================================================================

- Audio Out Port has not changed normally since then

Please check attached log and picture , please analyze the log.
SKB has an important interest in this issue.
It's important whether it's our issue or not. what is the cause of this issue?

The ALT QA team tested it, but it can't be reproduced.
Please check it quickly.

Thank you
YK.Jung
TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List (ALTech) SY Yoon , (Amlogic) Matt Jheng , (Amlogic) Shawn Wu

Activities

(ALTech) Younkwang Jung

2021-02-08 11:30

developer

smart3_bluetooth_mute_audio.txt.zip (250,026 bytes)

(SW) Kerwin Chen

2021-02-08 14:10

developer   ~0006048

Hi Mr. YK Jung,

Could you ask SKB to check this issue on latest version ?
From the log, STB is still running '15.522.49;.

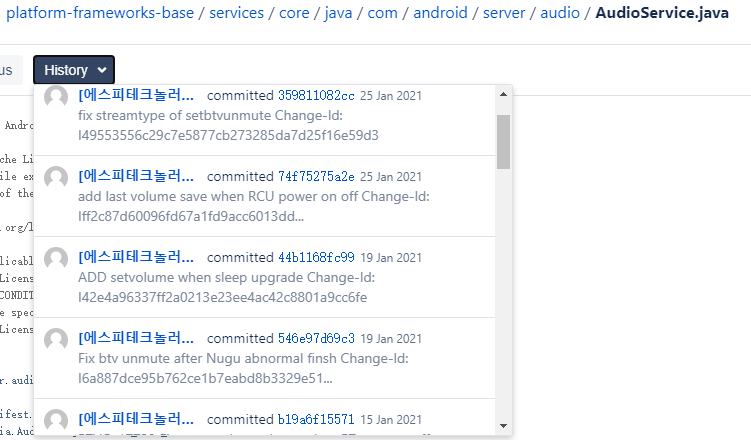

I see there are some fixes from SPtek.
Thanks !

(ALTech) Younkwang Jung

2021-02-08 15:01

developer   ~0006049

Hi Kerwin

Like you said,
This FW is version v15.522.49, and since then, SPTek has made some modifications.
but SPTeK says that the modification is not related to this issue.

Could this happen because this issue is a crash?

Thanks!
YK.Jung

(SW) Kerwin Chen

2021-02-08 17:22

developer   ~0006052

Hi Mr. YK Jung,

Is it possible to know when SKB manager start to capture the log ?
Please help to collect more information to analyze the log.
Thank !

(ALTech) Younkwang Jung

2021-02-08 19:24

developer   ~0006059

Hi Kerwin

I'll contact you again when the log is updated one more time.
From the backtrace, it seems to be an Amlogic issue rather than an FNX issue.
Anyway, I will contact you when the log is updated.

Thank you!!
YK.Jung

Issue History

Date Modified Username Field Change
2021-02-08 11:30 (ALTech) Younkwang Jung New Issue
2021-02-08 11:30 (ALTech) Younkwang Jung Status new => assigned
2021-02-08 11:30 (ALTech) Younkwang Jung Assigned To => (SW) Kerwin Chen
2021-02-08 11:30 (ALTech) Younkwang Jung File Added: image.png
2021-02-08 11:30 (ALTech) Younkwang Jung File Added: smart3_bluetooth_mute_audio.txt.zip
2021-02-08 12:21 (ALTech) Younkwang Jung Issue Monitored: (ALTech) SY Yoon
2021-02-08 14:10 (SW) Kerwin Chen File Added: BTF_framework_base.png
2021-02-08 14:10 (SW) Kerwin Chen Note Added: 0006048
2021-02-08 15:01 (ALTech) Younkwang Jung Note Added: 0006049
2021-02-08 17:22 (SW) Kerwin Chen Note Added: 0006052
2021-02-08 19:24 (ALTech) Younkwang Jung Note Added: 0006059
2021-02-08 19:37 (SW) Jacky Chiang Project T99X171.00 SKB Eagle => T99X171.00 SKB Eagle_Vendor_Issue
2021-02-08 19:37 (SW) Jacky Chiang Category SW => General
2021-02-08 19:38 (SW) Jacky Chiang Assigned To (SW) Kerwin Chen => (Amlogic) Mega Wu
2021-02-08 19:38 (SW) Jacky Chiang Issue Monitored: (Amlogic) Shawn Wu
2021-02-08 19:38 (SW) Jacky Chiang Issue Monitored: (Amlogic) Matt Jheng
2021-12-23 16:27 (SW) Jacky Chiang Status assigned => closed
2021-12-23 16:27 (SW) Jacky Chiang Resolution open => fixed
